Irrigated Lima Bean Yield & Quality

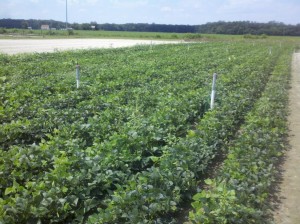

Two baby lima bean varieties with drip tape between each row. The field is divided into 16 separate irrigation zones, each with its own soil Watermark 950T soil moisture monitoring transmitter.

Research will be performed to determine the ideal irrigation management strategy for lima beans.  An automatic irrigation control system will be utilized to schedule irrigation based on actual soil moisture levels.  Yield and quality differences will be compared across 4 irrigation treatments and the economics of each intensity level will be determined and shared with producers. Irrigation research for baby lima beans will be performed on the University of Delaware, Research and Education Center farm in Georgetown.

The field trials will have 4 replications of two varieties of baby limas (one less stress tolerant and one more stress tolerant) with four irrigation treatments (8 plots total per replication).  Plots will be 2 rows, 25’ in length.

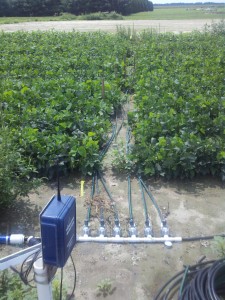

Watermark 950R Data Logger with the drip irrigation control manifold in the background.

Irrigation will be provided by 2 lines of low flow (0.22 gpm/100’) drip tape per plot.

Irrigation treatments will consist of:

Treatment 1 – No Irrigation

Treatment 2 – Irrigation will be triggered when the plant available water (PAW) reaches 50% of capacity throughout all crop stages; irrigation will be interrupted when the soil reaches field capacity (100% available water).

Treatment 3 – Irrigation will be triggered when the PAW reaches 35% of capacity throughout all crop stages; irrigation will be interrupted when the soil reaches field capacity (100% available water).

Treatment 4 – Irrigation will be triggered during vegetative growth stages at 35% of PAW followed by a 50% PAW trigger during reproduction.

Watermark 950T matric potential sensors will be placed at 4”, 12” and 18” depth within each plot and will be hard wired to a Campbell CR 1000 data logger.  The data logger will collect and record the real time soil moisture content every ½ hour.  The data logger control ports will energize a 24VAC solenoid valve to initiate irrigation whenever the measured soil moisture levels are below the set point.

Each plot will be evaluated for plant effects, harvestable yield, and quality.  Plots will be harvested as close to ten percent dry pods as possible.  Plants will be cut off at soil level and weighed for fresh weights. To determine maturity at harvest, pods will be stripped from five harvested plants from each plot and counted as full, flat or dry. The plants and pulled pods will be fed into a stationary FMC viner to shell. After cleaning of any trash, shelled beans will be weighed to determine yield.  Plant stress measurements such as canopy temperature or spectral reflectance will also be collected at points throughout the growth cycle.

Presentations will be made at the 2014 & 2015 Delaware Ag Week to present the results of this 3 year study.
